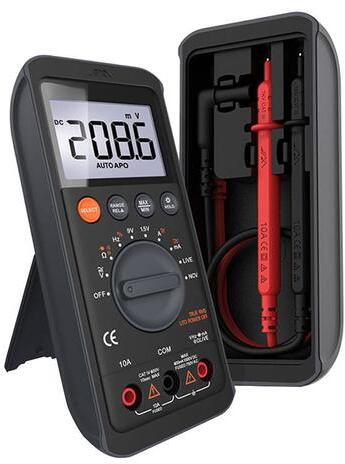

JIMI Home JM-G3401 Digital Universal Multimeter. JIMI Home JM-G3401 is a multifunctional device that you will use during electrical work. With it you will measure voltage, resistance, capacitance, frequency, true RMS value and much more. It is equipped with a display, large dial and buttons for convenient operation. Accurate measurements The JIMI Home digital universal multimeter stands out for its outstanding precision. Thanks to its clever design, you will accurately measure the true RMS value regardless of the conditions. What's more, it automatically changes the measurement range of AC/DC voltage, current, resistance, etc. , making measurements more accurate. In addition, it offers non-contact voltage detection (NCV) and Live Test function. More capabilities The JIMI Home JM-G3401 also allows you to measure battery voltage - just attach the black (-) and red (+) wires to the battery. In addition, it has self-restoration fuses, which will be renewed in about 3-5 seconds if blown. In addition, the LCD display will provide you with information about the operation of the device. The multimeter also has a backlight function for the screen. To turn it on, hold down the HOLD button for 2 seconds. Thoughtful design The JIMI Home digital multimeter is designed to make using it convenient. The magnetic design allows you to attach the product to a metal surface, for comfortable use. The device also has a stand, for greater freedom. The wires are made of pure 10A copper and finished with heat-resistant plastic. In addition, the product is distinguished by a 2-piece design, which allows you to simultaneously store the wires and protect the display from scratches. Automatically shuts off This is not the end of the advantages of the JIMI Home JM-G3401. The product has an automatic shut-off function if you don't use it for 15 minutes. After this time, it will go into sleep mode to save energy. In addition, you can disable this function at any time - just press the SELECT button and the APO message will appear on the screen. Included

• Digital universal multimeter
• Measuring wires
• User manual

ManufacturerJIMI HomeModelJM-G3401DC voltage measurement range600mV/6V/60V/600V/1000V (±0.5%+3, 0.8%+10)AC voltage measurement range500mV/6V/60V/600V750V (±0.8%+3, 1.2%+10)DC current measurement range60mA/400mA/6A/10A (±1.2%+10, 2.0%+10)AC current measurement range60mA/400mA/6A/10A (±1.2%+10, 2.0%+10)Resistance measurement range600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/6 0Mꭥ (±0.8%+5, 0.8%+3, 2.5%+3)Capacitance measurement range60nF/600nF/6F/60F/600F/6mF/60mF (±5.5%+20, 5.0%+3)Frequency measurement range10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/1 0MHzTemperature (°C/°F)0°C ~ 40°CDiode testingYesNCVYesLive testYesOn/Off testYesDisplayLCDTrue RMS valueYesSelf-recovery fuseYesSampling frequencyapprox. 3 times per secondAutomatic power offYes, after 15 minLow voltage indicatorYesIlluminationYesData storageYesNumber of counts5999Overload indicatorOLPower supply2x 1.5V AAA batteriesWeight340g (including batteries)Dimensions153 x 70 x 53 mm
